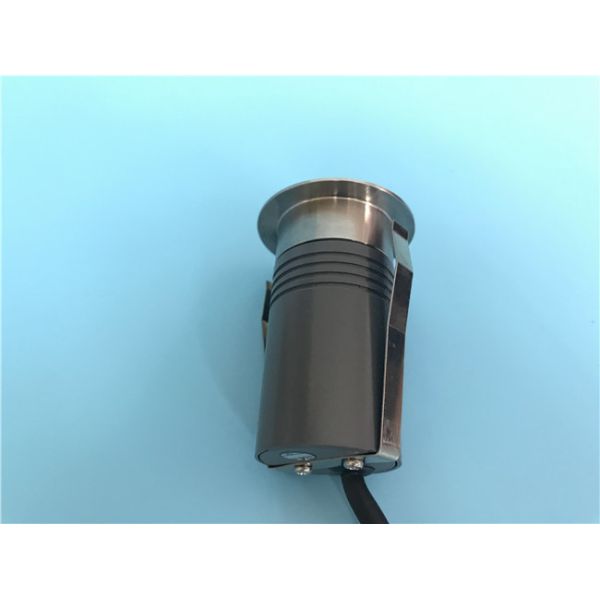

Warm White Dimmable Outdoor Underground Lights 60 Degree Beam Angle

Brand Name : A.L

Model Number : AL-2W

Certification : CE,RoHS

Place of Origin : Guangdong,China

MOQ : 5pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2,000pcs per day

Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays

Packaging Details : 24pcs/CTN (38x29x27CM),Weight 10Kg

Power : 1W,3W

LED Type : 1W/3W CREE high power LED

Beam Angle : 30°/35°/50°

Input : 24V;120V;240V

IP Grade : IP67

Tempered Glass : Thinkness = 7mm

Contact Now

316 Stainless Steel LED Underground Lights 3W DC24V 120V 240V For Outdoor Lighting

Quick Details

2W 3W power
12V,24V,120V,240V
R/G/B/Y/RGB 3in1/WW/CW/W color optional
Φ55mm x H91mm dimension
15°/30°/60° beam angle
2 years warranty

Technical Datas

Model No.	AL-2W
Input Voltage	24V,120V,240V
Power	1W,2W,3W
Light Size	Φ55mm x H72m
Sleeve Size	Φ50mm x H95m
Color	R/G/B/Y/RGB 3in1/Amber/W/CW/WW
Color Temperature	2700K~6500K
LED Chip	CREE 1W/3W high power LED
LED Qty	6pcs/7pcs/9pcs
Beam Angle	30°/35°/50°
Dimmable	YES
IP Grade	IP67
Weight	0.41Kg
Front Cover	304 / 316 Stainless Steel
Housing	Die-casting aluminum
Sleeve	PVC
Carton Package Dimension	38 x 29 x 27CM
Carton Package Qty	24pcs
Carton Package Weight	10Kg
Certification	CE,RoHS
Warranty	2/3years

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Lens:Optical lens,efficiency≥85%
Gasket:Molding shaped silicone seal
Glass:Step tempered galss,T=8mm
Cable gland:IP68 PG-9 copper with nickel-coated.
LED:High power LED
Loading capacity:Exert force area of Φ10=1330Kgs
Applicaation environment: -20℃-40℃
Power cable:24VDC low voltage:
H05RN-F 2x1.0mm² L=0.5M
Main voltage:
H05RN-F 3x1.0mm² L=0.5M
RGB 24VDC
H05RN-F 4x0.75mm² L=0.5M
Mounting Sleeve:011PVC

Model Number Information

Model No.	Color	Power	Front Shape	Lens
AL-2WR02	W/WW/CW/R/G/B/Y	1 x 2W	Round	Symmetrical & Asymmetrical
AL-2WR05	RGB 3in1	1 x 3W	Round	Symmetrical & Asymmetrical
AL-2WR05M	RGB 3in1 DMX512	1 x 3W	Round	Symmetrical & Asymmetrical
AL-2WR07	RGBW 4in1	1 x 3W	Round	Symmetrical & Asymmetrical
AL-2WS02	W/WW/CW/R/G/B/Y	1 x 2W	Square	Symmetrical & Asymmetrical
AL-2WS05	RGB 3in1	1 x 3W	Square	Symmetrical & Asymmetrical
AL-2WS05M	RGB 3in1 DMX512	1 x 3W	Square	Symmetrical & Asymmetrical
AL-2WS07	RGBW 4in1	1 x 3W	Square	Symmetrical & Asymmetrical

Competitive Advantage

316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
Single color/RGB 3in1/RGBW 4in1/RGB 3in1 DMX512,various colors optional.
Low voltage 12V 24V,high voltage 120V-240V optional.
Symmetrical & Asymmetrical lens optional,surface lighting effect.

Size

Warm White Dimmable Outdoor Underground Lights 60 Degree Beam Angle

Asymmetrical and Symetrical Lens

Common Lens Unsymmetrical Lens Surface

Application

Park
Garden
Villa
Square
Stairs
All outdoor landscape lighting

Packing

Application Scene
