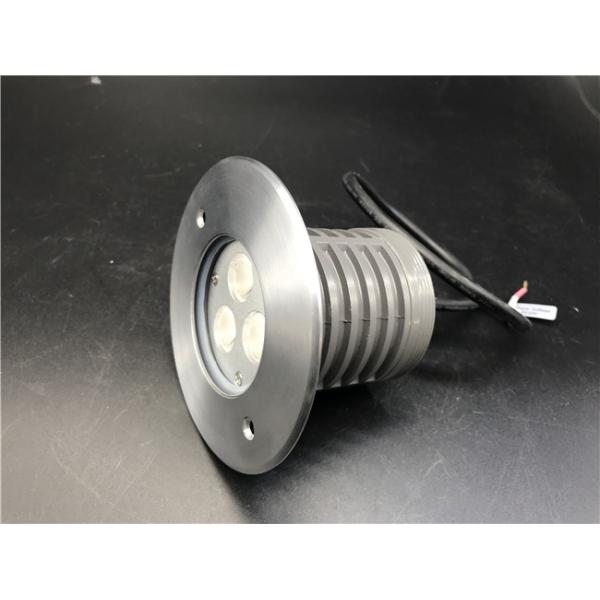

3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover
Description
Good brand of Cree/Osram high power LED,light is soft and uniform.The underground lights use 316 stainless steel as light front cover.
Never rust,and light housing use die-casting alumium,perfect heat dissipation,ensure the light has long lifetime.
The light has round and square shape front covers,meet different requirements lighting projects.
Technical Datas
| Model No. | AL-2CD |
| Input Voltage | 24V,120V,240V |
| Power | 3W;9W |
| Light Size | Φ116mm x H73m |
| Sleeve Size | Φ110mm x H118m |
| Color | R/G/B/Y/RGB 3in1/Amber/W/CW/WW |
| Color Temperature | 2700K~6500K |
| LED Chip | CREE 1W/3W high power LED |
| LED Qty | 3pcs |
| Beam Angle | 15°/30°/60° |
| Dimmable | YES |
| IP Grade | IP67 |
| Weight | 1.14Kg |
| Front Cover | 304 / 316 Stainless Steel |
| Housing | Die-casting aluminum |
| Sleeve | PVC |
| Carton Package Dimension | 27 x 27 x 29CM/8pcs |
| Carton Package Weight | 7Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material & Manufacturing Technique
Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Lens:Asymmetrical and symmetrical optical lens,efficiency≥85%
Gasket:Molding shaped silicone seal
Glass:Step tempered galss,T=8mm
Cable gland:IP68 PG-9 copper with nickel-coated.
LED:High power LED
Loading capacity:Exert force area of Φ10=1330Kgs, Φ30=1840Kgs
Applicaation environment: -20℃-40℃
Power cable:24VDC low voltage:
H05RN-F 2x1.0mm² L=0.5M
Main voltage:
H05RN-F 3x1.0mm² L=0.5M
RGB 24VDC
H05RN-F 4x0.75mm² L=0.5M
Mounting Sleeve:PVC
Color Temperature & Color
- 2000K 3000K 4000K 6000K
- RGB
- RGB 3in1
- RGB with DMX512
- RGB 3in1 with DMX512
Dimmable Support
Item No. Information
| Model No. | Colors | Voltage | Beam Angle | Cover Shape | Power |
| AL-2CDR | Single Color | 12/24VDC 120/240V | 10/25/45/60° | Round | 3 x 2W |
| RGB | 12/24VDC | 3 x 3W |
| RGB with DMX512 | 12/24VDC | 3 x 3W |
| RGB 3in1 | 12/24VDC | 3 x 3W |
| RGB 3in1 with DMX 512 | 12/24VDC | 3 x 3W |
| AL-2CDS | Single Color | 12/24VDC 120/240V | 10/25/45/60° | Square | 3 x 2W |
| RGB | 12/24VDC | 3 x 3W |
| RGB with DMX512 | 12/24VDC | 3 x 3W |
| RGB 3in1 | 12/24VDC | 3 x 3W |
| RGB 3in1 with DMX 512 | 12/24VDC | 3 x 3W |
| AL-C2CDR | Single Color | 12/24VDC 120/240V | 45|35° | Round | 3 x 2W |
| RGB | 12/24VDC | 3 x 3W |
| RGB DMX512 | 12/24VDC | 3 x 3W |
| RGB 3in1 | 12/24VDC | 3 x 3W |
| RGB 3in1 with DMX 512 | 12/24VDC | 3 x 3W |
| AL-C2CDS | Single Color | 12/24VDC 120/240V | 45|35° | Square | 3 x 2W |
| RGB | 12/24VDC | 3 x 3W |
| RGB DMX512 | 12/24VDC | 3 x 3W |
| RGB 3in1 | 12/24VDC | 3 x 3W |
| RGB 3in1 with DMX 512 | 12/24VDC | 3 x 3W |
| AL-D2CDR | Single Color | 12/24VDC 120/240V | / | Round | 1.2W |
| RGB 3in1 | 12/24VDC | 1.8W |
| AL-D2CDS | Single Color | 12/24VDC 120/240V | / | Square | 1.2W |
| RGB 3in1 | 12/24VDC | 1.8W |
AL-2CDR/AL-2CDS:Symmetrical lens
AL-C2CDR/AL-2CDS:Asymmetrical lens
AL-D2CDR/AL-D2CDS:SMD LED with light panel
Product Advantage
- 304/316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
- R/G/B/Y/W/CW/WW/RGB 3in1 color optional,meet different lighting design.
- Low voltage 12V 24V,high voltage 120V-240V optional.
- Symmetrical & Asymmetrical lens optional,choose the most appropriate lighting way for the building.
Dimension
Photoes
Application
Tag:
LED underground light,LED inground lights,LED step light,LED stair light,LED lawn light,LED tree light
