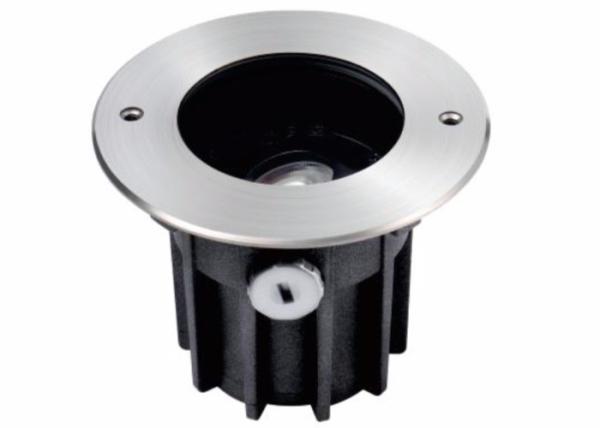

COB LED Depth Illuminant External Adjustable Beam Direction Underground Lights
Features
- External light angles adjustable.
- Depth illuminant,no glare.
- Cree COB light source.
Quick Details
- LED Type:1pcs CREE COB LED
- Voltage:DC12/24V,120V/240V
- Beam Angle:18/24°/38°/60°
- Material:316 stainless steel+die-casting aluminum+ABS
- IP Rating:IP67
- CRI:Ra>80
- Warranty:2 years
Technical Datas
| Model No. | AL-F2HO |
| Input Voltage | 24V,120V,240V |
| Color | Warm White/Natural White/White/RGB 3in1/RGBW 4in1 |
| Color Temperature | 3000K 4000K 5000K |
| LED Chip | CREE COB LED |
| LED Qty | 1pcs |
| Beam Angle | 18/24°/38°/60° |
| Dimmable | YES |
| IP Grade | IP67 |
| Weight | 1.14Kg |
| Front Cover | 316 Stainless Steel |
| Housing | Die-casting aluminum |
| Sleeve | ABS |
| Carton Package Dimension | 27 x 27 x 29CM/8pcs |
| Carton Package Weight | 7Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material Specification
Front Cover: Stainless steel SUS316L
Housing: 12# Die-casting grey powder coated aluminum.Adhesion of ISO class 1/ASTM class 4b.
LED: CREE LED
Glass: Step tempered glass,T=8mm
Gasket: Toolng shaped seal
Driver: Constant current output,constant current output.
Power Cable: H05RN-F 2x1.0mm2 L=0.5m (low voltage)
H05RN-F 3x0.75mm2 L=0.5m (high voltage)
Mounting Sleeve: ABS
Item No. Information
| Model No. | Colors | Voltage | Beam Angle | Power |
| AL-2FHOA | Single Color | 12/24VDC 120/240V | 18/24°/38°/60° | 1 x 5W |
| AL-2FHOB | Single Color | 12/24VDC 120/240V | 18/24°/38°/60° | 1 x 10W |
| AL-2FHOC | Single Color | 12/24VDC 120/240V | 18/24°/38°/60° | 1 x 15W |
| AL-2FHOD | Single Color | 12/24VDC 120/240V | 18/24°/38°/60° | 1 x 20W |
| AL-2FHOE | Single Color | 12/24VDC 120/240V | 18/24°/38°/60° | 1 x 25W |
| AL-2FHOF | Single Color | 12/24VDC 120/240V | 18/24°/38°/60° | 1 x 40W |
Product Advantage
- 316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
- Low voltage 12V 24V,high voltage 120V-240V optional.
- 18/24°/38°/60°various beam angle optional.
- IP67 waterproof,fireproof ABS sleeve,safe and durable.

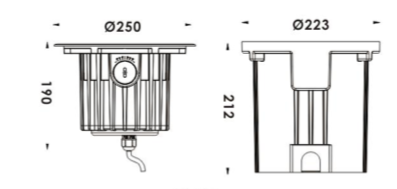

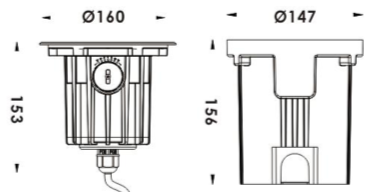

Dimension
Photoes
Application
- Light walls
- Facades
- Columns
- Bridges
- Monuments
- Trees
