Osram High Power RGB 3 in1 Outdoor LED Inground Light DMX512 DC24V

Product Categories

LED Flat Panel Light [46]
LED Recessed Panel Light [50]
Surface Mounted LED Panel Light [42]
Recessed LED Downlight [28]
Flexible LED Strip Light [158]
LED Flex Neon Light [150]
LED Swimming Pool Light [16]
LED High Bay Light [22]
LED Bulkhead Light [34]
Outdoor LED Flood Light [40]
LED Garden Spotlight [88]
LED Underwater Lights [194]
LED Underground Light [112]
LED Wall Light [46]

A.L Lighting Limited

Contact Now

Osram High Power RGB 3 in1 Outdoor LED Inground Light DMX512 DC24V

Brand Name : A.L

Model Number : AL-2W

Certification : CE,RoHS

Place of Origin : Guangdong,China

MOQ : 5pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2,000pcs per day

Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays

Packaging Details : 24pcs/CTN (38x29x27CM),Weight 10Kg

Power : 1W,3W

LED Type : 1W/3W CREE high power LED

Beam Angle : 30°/35°/50°

Input : 24V;120V;240V

IP Grade : IP67

Tempered Glass : Thinkness = 7mm

Contact Now

Osram High Power LED RGB 3in1 With DMX512 Outdoor LED Inground Light DC24V

Quick Details

1. Power:2W 3W
2. Voltage:24V,120V,240V
3. Color:R/G/B/Y/RGB 3in1/RGBW 4in1 WW/CW/W
4. Light Size:Φ55mm x H91mm
5. Lens:Symmetrical & Asymmetrical
6. Beam Angle:15°/30°/60°
7. Material:316 stainless steel + Die-casting aluminum
8. Warranty:Two years

Technical Datas

Model No.	AL-2W
Input Voltage	24V,120V,240V
Power	1W,2W,3W
Light Size	Φ55mm x H72m
Sleeve Size	Φ50mm x H95m
Color	R/G/B/Y/RGB 3in1/Amber/W/CW/WW
Color Temperature	2700K~6500K
LED Chip	CREE 1W/3W high power LED
LED Qty	6pcs/7pcs/9pcs
Beam Angle	30°/35°/50°
Dimmable	YES
IP Grade	IP67
Weight	0.41Kg
Front Cover	304 / 316 Stainless Steel
Housing	Die-casting aluminum
Sleeve	PVC
Carton Package Dimension	38 x 29 x 27CM
Carton Package Qty	24pcs
Carton Package Weight	10Kg
Certification	CE,RoHS
Warranty	2/3years

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Lens:Optical lens,efficiency≥85%
Gasket:Molding shaped silicone seal
Glass:Step tempered galss,T=8mm
Cable gland:IP68 PG-9 copper with nickel-coated.
LED:High power LED
Loading capacity:Exert force area of Φ10=1330Kgs
Applicaation environment: -20℃-40℃
Power cable:24VDC low voltage: H05RN-F 2x1.0mm² L=0.5M
Main voltage:H05RN-F 3x1.0mm² L=0.5M
RGB 24VDC:H05RN-F 4x0.75mm² L=0.5M
Mounting Sleeve:Black ABS

Model Number Information

Model No.	Color	Power	Front Shape	Lens
AL-2WR02 AL-2WS02	W/WW/CW/R/G/B/Y	1 x 2W	Round Square	Symmetrical
AL-2WR05 AL-2WS05	RGB 3in1	1 x 3W	Round Square	Symmetrical
AL-2WR05M AL-2WS05M	RGB 3in1 DMX512	1 x 3W	Round Square	Symmetrical
AL-2WR07 AL-2WS07	RGBW 4in1	1 x 3W	Round Square	Symmetrical
AL-B2WR02 AL-B2WS02	W/WW/CW/R/G/B/Y	1 x 2W	Round Square	Asymmetrical
AL-B2WR05 AL-B2WS05	RGB 3in1	1 x 3W	Round Square	Asymmetrical
AL-B2WR05M AL-B2WS05M	RGB 3in1 DMX512	1 x 3W	Round Square	Asymmetrical
AL-D2WR02 AL-D2WS02	W/WW/CW/R/G/B/Y	1 x 2W	Round Square	/
AL-D2WR05 AL-D2WS05	RGB 3in1	1 x 3W	Round Square	/
AL-D2WR05M AL-D2WS05M	RGB 3in1 DMX512	1 x 3W	Round Square	/

Competitive

316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
Single color/RGB 3in1/RGBW 4in1/RGB 3in1 DMX512,various colors optional.
Low voltage 12V 24V,high voltage 120V-240V optional.
Symmetrical & Asymmetrical lens optional,surface lighting effect.

Size

Osram High Power RGB 3 in1 Outdoor LED Inground Light DMX512 DC24V

Asymmetrical and Symetrical Lens

Common Lens Unsymmetrical Lens Surface

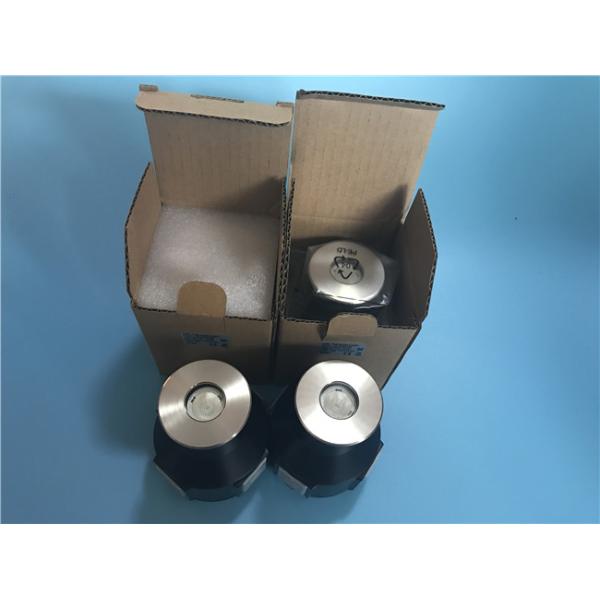

Products Photoes

Application

Osram High Power RGB 3 in1 Outdoor LED Inground Light DMX512 DC24V
