IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
Quick Details
- Power:2W
- Voltage:24V,120V,240V
- Color:R/G/B/Y//WW/CW/W
- Light Size:Φ55mm x H76mm
- Lighting Way:Side Lighting
- Beam Angle:30°
- Material:304/316 stainless steel + Die-casting aluminum
- Warranty:Two years
Technical Datas
| Model No. | AL-1E2W |
| Input Voltage | 24V,120V,240V |
| Power | 2W |
| Light Size | Φ55mm x H78m |
| Sleeve Size | Φ48mm x H98m |
| Color | R/G/B/Y/Amber/W/CW/WW |
| Color Temperature | 2000K 3000K 4000K 6000K |
| LED Chip | CREE 1W/3W high power LED |
| LED Qty | 1pcs |
| Beam Angle | 30° |
| Dimmable | YES |
| IP Grade | IP67 |
| Weight | 0.41Kg |
| Front Cover | 304 / 316 Stainless Steel |
| Lighting Way | Side Lighting |
| Housing | Die-casting aluminum |
| Sleeve | PVC |
| Carton Package Dimension | 38 x 29 x 27CM |
| Carton Package Qty | 24pcs |
| Carton Package Weight | 10Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material & Manufacturing Technique
Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Loading Capacity:>2000Kg
Cable gland:IP68 PG-11 copper with nickel-coated.
Gasket:Molding shaped silicone seal
Driver:Constant current output
Applicaation environment: -20℃-40℃
Power cable: H05RN-F 3x1.0mm² L=0.5M(High Voltage)
Mounting Sleeve:Fireproof PVC
Model Information
| Model No. | Color | Power | Lighting Way |
| AL-1E2W | Singel Color | 2W | One-Side-Lighting |
| RGB 3in1 | 2W | One-Side-Lighting |
| AL-2E2W | Singel Color | 2W | Two-Side-Lighting |
| RGB 3in1 | 2W | Two-Side-Lighting |
| AL-4E2W | Singel Color | 2W | Four-Side-Lighting |
| RGB 3in1 | 2W | Four-Side-Lighting |
Competitive Advantage
- 316 stainlss steel front cover,never rust.
- 12V/24V low safe voltage,120V/240V high voltage,don't need power supply.
- One/Two/Four ways lighting,beautiful lighting effect.
- Triac,PWM,1-10V,Dali dimmable support.
- Strong 0.75mm²,1.0mm² power cable,length can be customized.
- Good quality constant current input drivers,long lifetime.
Size

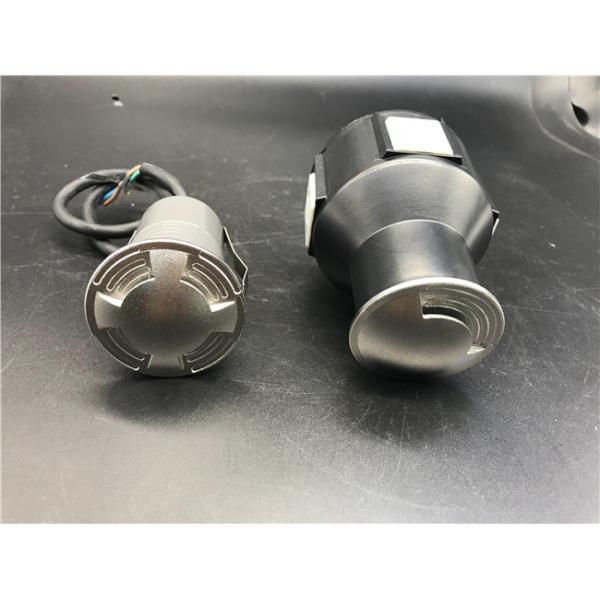

Product Photoes

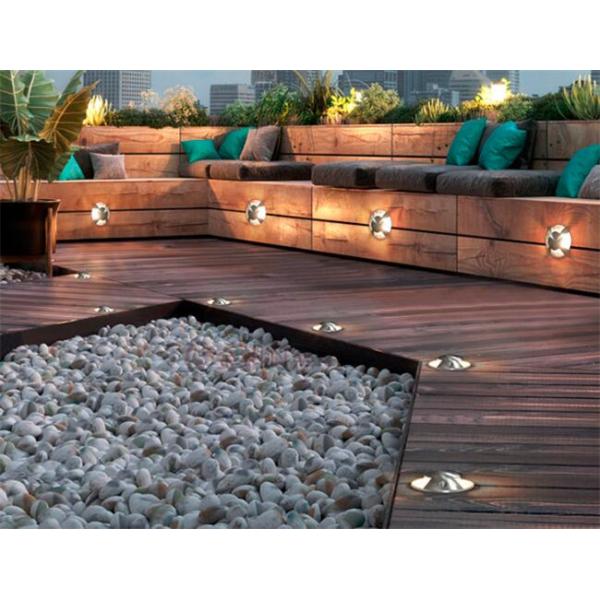

Application
- Squares,park,garden,shopping mall,lawn,hotel,landscape lighting...
